Rogue UAVs Are Disrupt-ing the Skies

Unauthorized UAVs are flying into restricted airspace, threatening flight safety, public safety, and critical infrastructure.

Quickly scan vast areas to uncover suspicious or unauthorized signals

Illegal Operators Use Stealth to Avoid Detection

Many rogue UAV pilots use tricks like signal hopping or turning off GNSS to hide from trackingsystems. This makes it hard for
traditional radar or visual systems to locate them quickly.

Detect. Approach. Investigate — the drone moves in instantly when suspicious activity is found.

When an abnormal signal is detected, the drone automatically navigates to the area for a close-range investigation. On the remote control screen, operators can view the drone’s current location, the estimated source of the suspicious activity, and key data points including Signal Quantity, Real-Time Signal Strength, High Confidence Markers, Historical Signals, and more.

Hard to Catch, Hard to Prove

After a UAV crash, pilots often run away, and the UAV itself can’t prove who flew it. Without live tracking or behavior logs, law enforcement faces serious challenges.

Instant Detection. Immediate Action.

The system can identify unauthorized drone pilots and instantly share their location for rapid response. With the Pilot Identification function, the drone quickly locks onto human targets, accelerating the search process.

Once an illegal flight is confirmed, the system automatically alerts command personnel, enabling a swift dispatch to the scene for on-site intervention, education, and rectification—ensuring airspace security is restored without delay.

Signal Jammers Cause Major Problems

Ground-based jamming devices interfere with normal UAV operations. They’re small and hidden, making them hard to find and stop—but they can seriously affect safe flights.

Expanded Coverage, Broader Detection

• Supports detection of UAVs from top global
brands
• 3 km operational range for wide-area scanning
• Locates concealed signal disruptors in UAV
frequency ranges

Clear Benefits for Public Safety
• Much higher chances of finding rogue pilots
• Fewer illegal UAV incidents in key areas
• Lower risk of airspace accidents

Smarter Tools for Law Enforcement
• Find rogue pilots early and prevent escapes
• Support fast, targeted enforcement response
• Detect illegal jammers to protect mission safety

Specifications

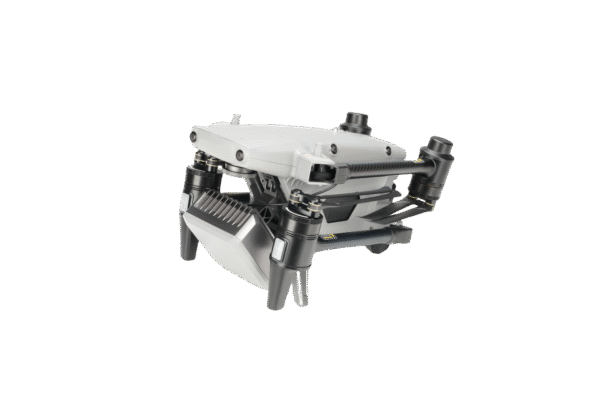

Aircraft

Empty Weight: 5478 g (Smart battery, propellers included, Tracer Air and gimbal excluded)
Weight: 6630 g (Smart battery, gimbal, propellers and Tracer Air included)
Maximum Take-Off Mass (MTOM): 8400 g
Fuselage Dimensions: 1205×980×278 mm (unfolded, incl. propellers)
780×568×278 mm (unfolded, excl. propellers)

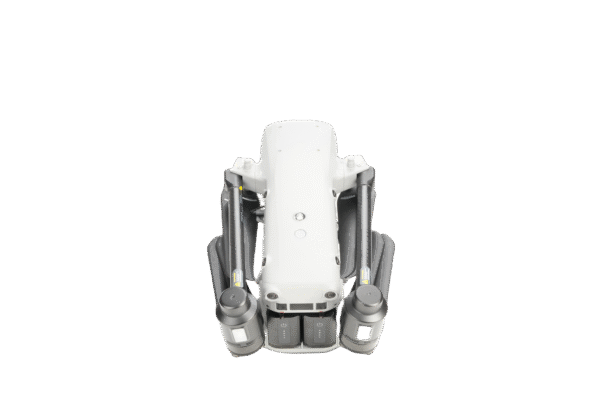

455×263×248 mm (folded, excl. propellers)
Maximum Flight Time (Windless, Speed: 10.5 m/s): 40 mins (Tracer Air Excluded); 33 mins (Tracer Air Included)

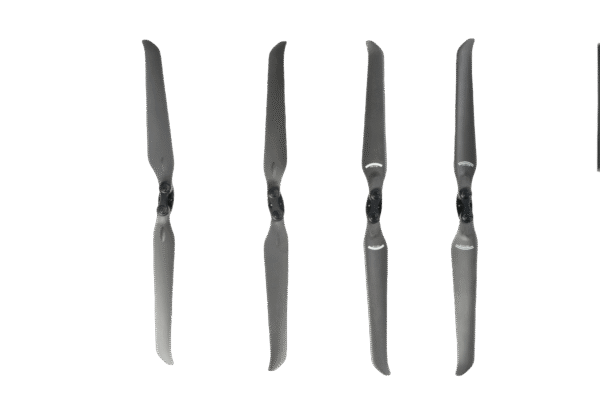

Maximum Range: 30 km (with carbon fiber propeller). 27.5 km (with injection molded propeller)
Maximum Wind Speed Resistance; 12 m/s
Maximum Flight Time (Windless, Speed: 10.5 m/s): 4500 meters
Operating Temperature: -20°C to 50°C
IP Rating: IP55
GNSS: GPS+Galileo+BeiDou+GLONASS
Operating Frequency: 900M; 2.4G, 5.2G; 5.8G

Tracer Air Radio Detection Device

Size: 130×120×68 mm (holding bracket excluded)
Weight: 745g (holding bracket excluded); 808 g (holding bracket included)
Operating Temperature: -20°C to 50°C
Protection Rating: IP65
Scanning Frequency Bands: 2.4G/5.2G/5.8G
Detection Number: Up to 6 target sources at the same time

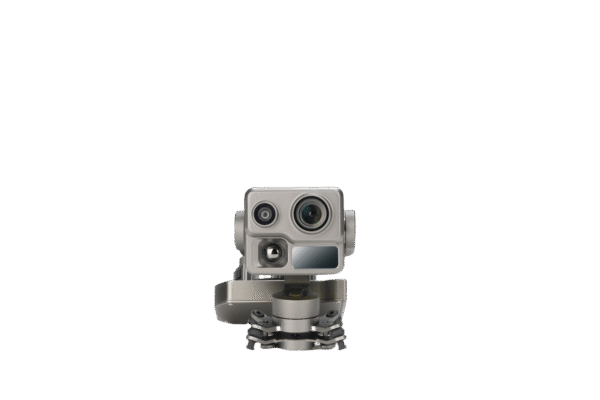

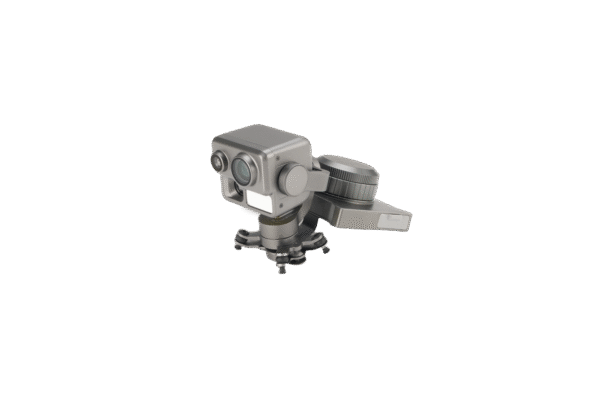

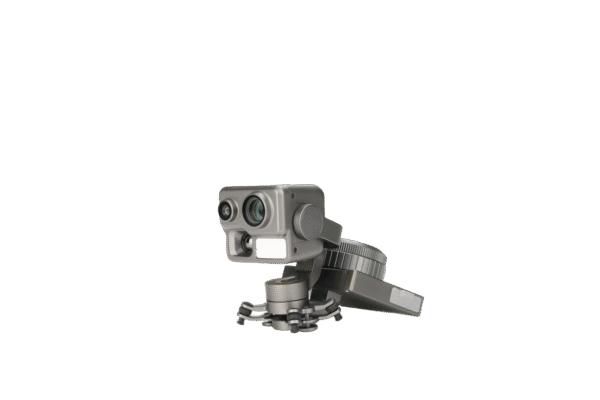

Gimbal

Dimension: 148.1×82×87.6 mm
Weight: 344 g
IP Rating: IP43
Operating Temperature: -20°C to 50°C
Zoom Camera

Image Sensor: 1/2″ CMOS. Effective pixels: 48M
Lens: Focal length: 11.8 mm – 43.3 mm
35 mm equivalent focal length: 64 – 234 mm
Aperture: F2.8~F4.8
Focus: 2 m ~ ∞
ISO Range: Auto: ISO100 – ISO6400
Manual: ISO100 – ISO6400
Shutter Speed: Shooting: 0.5s ~ 1/8000s; Recording: 1/30s ~ 1/8000s
Digital Zoom: 1- 3.7x continuous Optical zoom, 59.2x Digital zoom;
linked zoom supported
Photo Size: JPG: 3840×2160
Video Resolution: 3840×2160@30fps
Video Format: MP4
Video Encoding: H.264/H.265
Supported File Systems: exFAT/Fat32

Wide Angle Camera

Image Sensor: 1/2″ CMOS. Effective pixels: 48M
Lens: DFOV: 84°
Focal length: 4.49 mm
Equivalent focal length of 35 mm: 24 mm
Aperture: F2.8; Focus: 0.5m ~ ∞
ISO Range: Auto/Manual: ISO100 – ISO6400
Night Mode: ISO100 – ISO320000 (Video)
Shutter Speed: Shooting: 0.5s ~ 1/8000s; Recording: 1/30s ~ 1/8000s
Zoom: 1-16x Digital Zoom; linked zoom supported
Photo Format: JPG: 4000×3000
Video Resolution: 4000×3000@30fps
Video Format: MP4
Video Encoding: H.264/H.265
Supported File Systems: exFAT/Fat32

Infrared Thermal Imaging Camera

Image Sensor: Uncooled VOx Microbolometer
Lens: FOV: 61°; Focal length: 9.1 mm
Aperture: F1.0; Focusing distance: 2.2 m ~ ∞
Sensitivity: ≤50mK@25°C, F#1.0
Pixel Pitch: 12um
Wavelength: 8 – 14um
Zoom: 1-16x digital zoom; linked zoom supported
Temperature Alert: In area temperature measurement, support high and low
temperature alarm thresholds, reporting coordinates and
temperature values
Photo Size: 640×512
Video Resolution: 640×512@25fps
Video Format: MP4
Radiometric Measurement Method: Center temperature measurement/Pot temperature measurement/Area temperature measurement
Radiometric Temperature Range: -20°C to 150°C (high gain mode); 0 to 550°C (low gain mode)
Radiometric Measurement Accuracy: ±2°C or reading ±2% (using the larger value) @ ambient temperature ranges from -20°C to 60°C
Accurate Temperature Measurement Distance: 5 m
Palette: White Hot/Black Hot/Ironbow/Rainbow/Rainbow HC/Lava/Arctic/Searing/Gradation/Heat Detection
Photo Format: JPG (the images contain temperature information and are parsed by dedicated SDK and PC tools)

Laser Rangender

Wavelength: 905 nm
Measurement Accuracy: ± (1m+D*×0.15%) where D is the distance to a vertical reflecting plane
Measuring Range: 5 – 1200 m

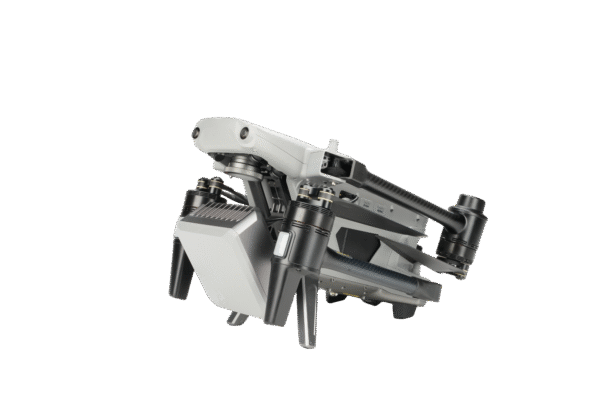

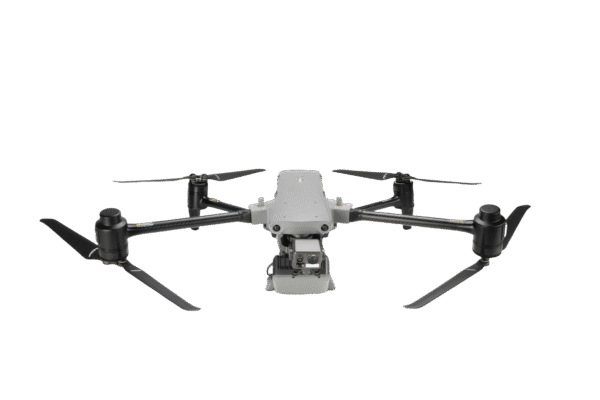

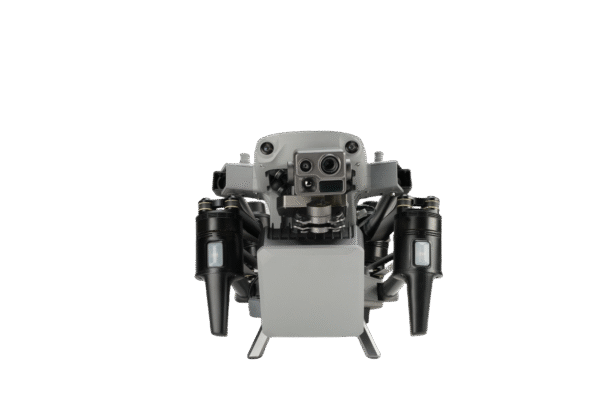

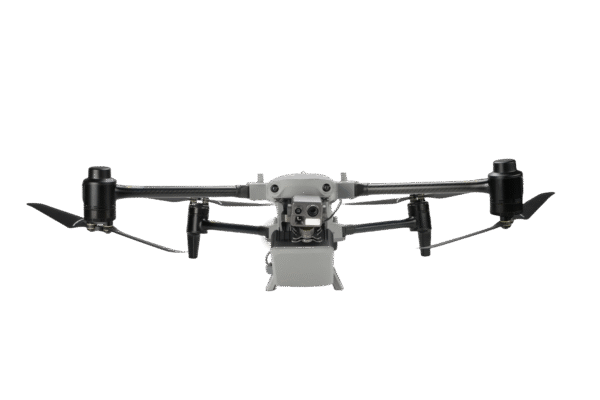

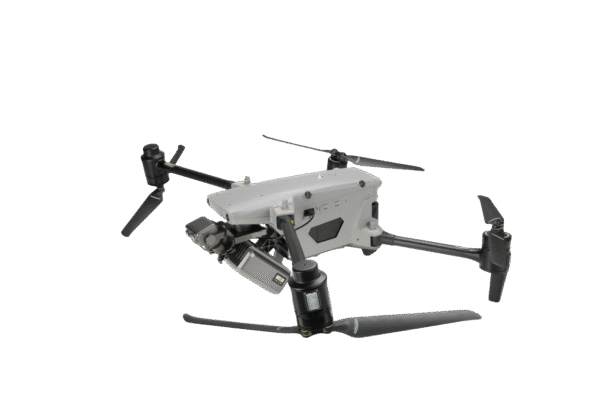

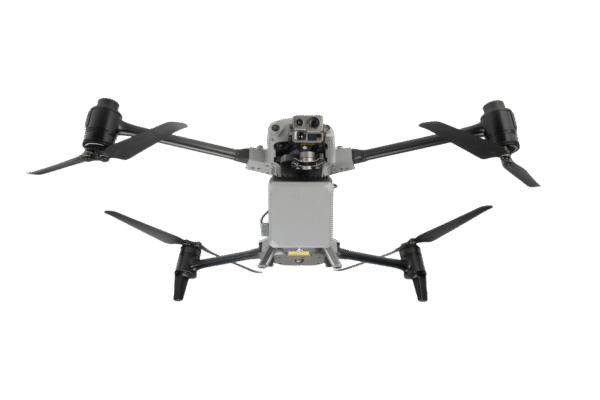

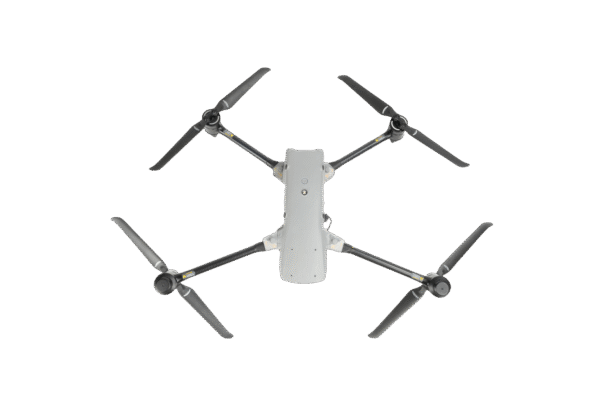

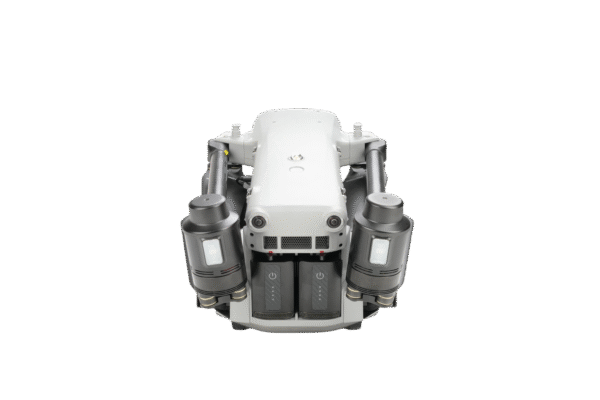

Autel Alpha Tracer (STA100)
