Combination Of Speed And Security

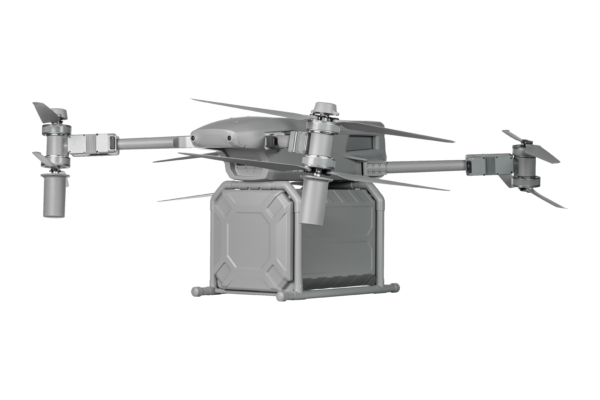

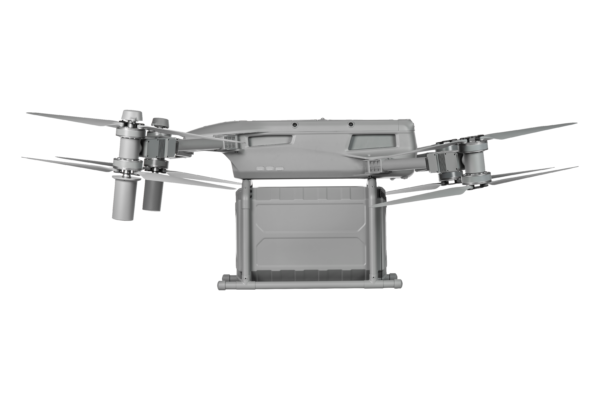

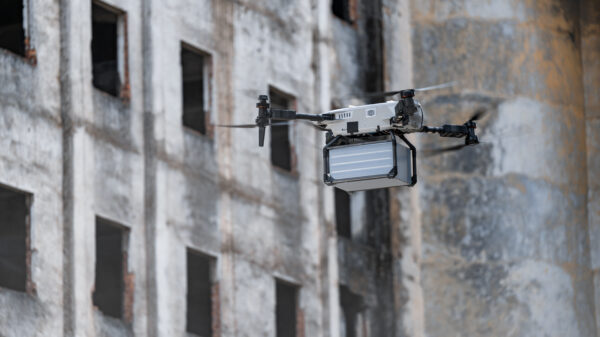

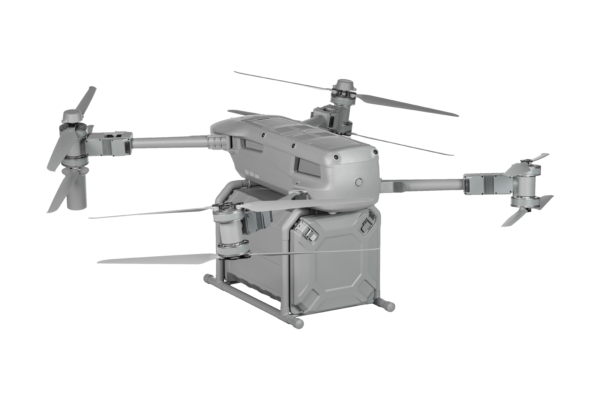

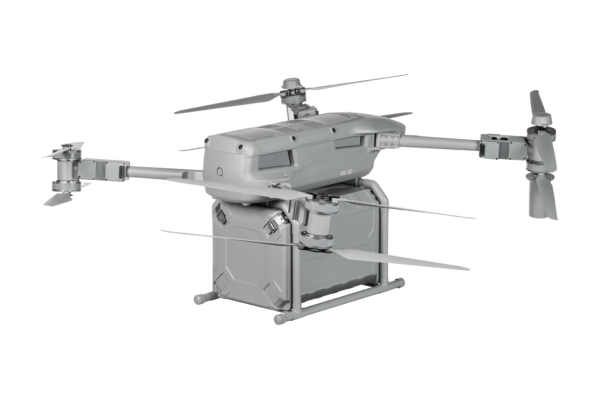

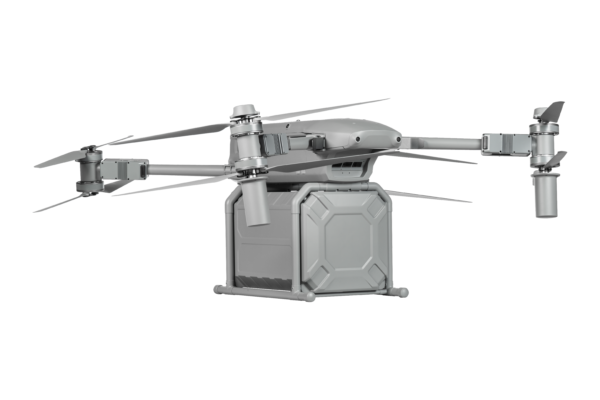

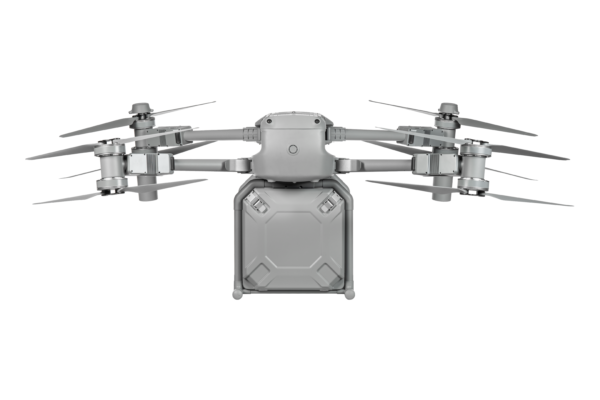

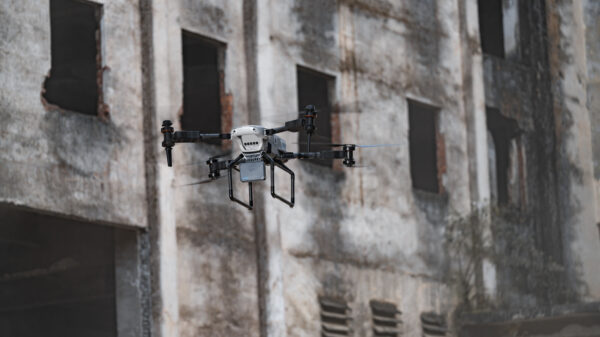

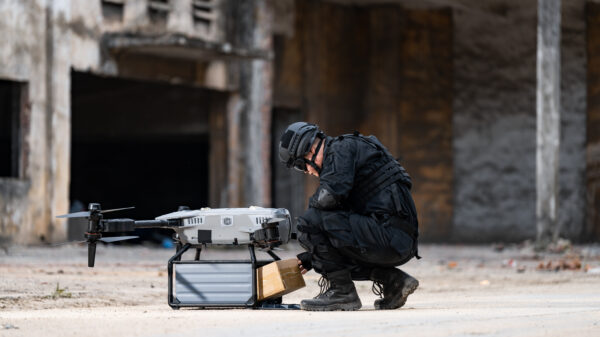

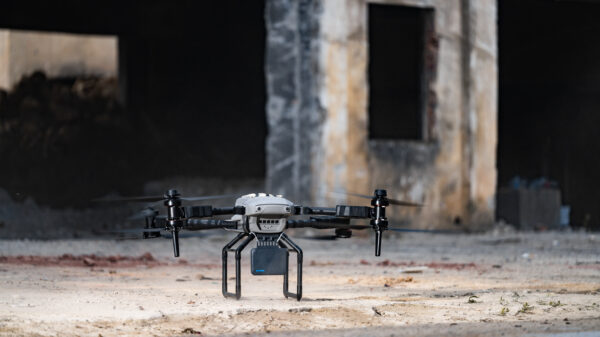

Autel Titan is a four-rotor, eight-propeller heavy-lift multi-rotor drone which boasts formidable anti-interference and payload capabilities, allowing safe and efficient transportation of up to 10 kg in complex environments. With a dual-battery redundancy design, it offers up to 55 min flight time. Its IP55 protection rating equips it to handle adverse environmental conditions and unexpected situations effectively. The integration of a binocular vision system and millimeter-wave radar enhances environmental perception and nighttime obstacle avoidance. Coupled with a dual thermal imaging gimbal camera, it covers both long an
d short-range operations, making it suitable for day and night, all-weather operations and providing efficient support for transportation and emergency response in various fields.

Exceptional Anti-Inter-ference Capability
High-Precision Visual Navigation
A-Mesh Network
Maximum Payload: 10 kg
Max. Flight Time: 55 minutes
Max. Range: 50 km
Hot-Swappable Batteries
Supports Multiple Payloads
720° Omnidirectional Obstacle Avoidance
Exceptional Anti-Interference Capability

Autel Titan’s GNSS visual positioning capabilities, adaptive frequency-hopping and SLAM navigation technology empowers resistance from interference and enables the drone to fly confidently near powerlines, critical structures, and in complex areas.

Extended Endurance, Superb Payload Capacity.

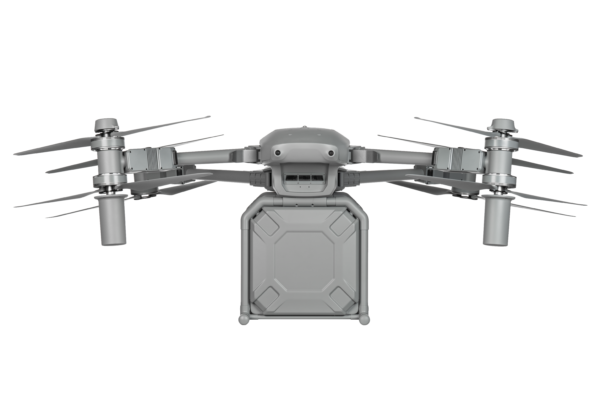

The four-rotor, eight-propeller foldable design is lightweight yet sturdy and reliable. This design enhances lifting capabilities, witha dual-battery redundancy design, it can achieve up to 60 minutes of maximum flight time with a standard payload and cover distances of up to 50 km, effectively accommodating payloads to 10 kg to meet diverse transportation needs.

A-Mesh Networking

With integrated A-Mesh networking technology, the drone can establish networks between
drones and controllers, supporting various working modes such as “single-controller
multiple drones” and “master-slave dual control.” Even in scenarios with long distances
and obstacles, such as mountains, buildings, or areas without a network, it can achieve multi-device networking, enabling drone-to-drone autonomous communication, connection, and collaboration.

Omnidirectional Obstacle Avoidance

By fusing multiple sensors, including a binocular fisheye vision system and
millimeter-wave radar, it provides 720°all-around perception and obstacle-avoidance capabilities. It also supports nighttime obstacle avoidance, ensuring safe flights.

Specifications

Weight (Battery and gimbal included): 23kg
Max. Payload: 10kg
Dimensions: 1879*1866*584mm (incl. propellers and mount.)
1141*1120*563mm (excl. propellers)
752*328*526mm (folded, excl. mount)
Diagonal Wheelbase:1440mm
Max Flight Time (windless): 65mins (without payload)
Max Flight Time (windless): 55mins (@1kg payload)
Max Horizontal Speed (windless near sea level): 25m/s
Max Wind Resistance: 12m/s (Level 8)
Operating Frequency: 2.4GHz/5.2GHz/5.8GHz/900MHz
IP Rating: IP55
Max Transmission Distance: 15km
GNSS: GPS / GLONASS / BDS / Galileo
Hovering Accuracy: Vertically:
±0.1 m (when vision systems working normally);
±0.3 m (when GNSS working normally);
Horizontally:
±0.15 m (when vision systems working normally);
±0.3 m (when GNSS working normally)
Operating Temperature: -20℃ to +50℃
Visual Sensing Systems: 5-way binocular vision OA, detection range >50m
Radar: 6-way millimeter-wave radar, supporting nighttime OA, detecting small metal objects at a distance >60m, buildings at a distance >100m
